The Project

The goals / steps of this project are the following:

Perform a Histogram of Oriented Gradients (HOG) feature extraction on a labeled training set of images and train a Linear SVM classifier
Apply a color transform and append binned color features, as well as histograms of color
Implement a sliding-window technique and use a trained classifier to search for vehicles in images.
Run your pipeline on a video stream and create a heat map of recurring detections frame by frame to reject outliers and follow detected vehicles.
Estimate a bounding box for vehicles detected.

Overview of Files

My project includes the following files:

README.md (writeup report) documentation of the results
L_project_video.mp4 the movie that shows the detected vehicles
car_finder_pipeline.py the pipeline that for vehicle detection
hotspots.py implementation of heatmap
image_util.py utility for loading and saving of images
lesson_functions.py some functions from the lesson
search_and_classify.py detection of vehicles in images
train.py code for training the classifier
train_pickle.p saved classifier including the parmeters that have been used for training and feature extraction
videoprocess.py processes the video

Feature Extraction and Training of Classfier

Feature extraction from the training images

The code for training the classifier is defined in function train() in file train.py. This function is invoked with a list of file names of vehicle and non-vehicle images and several parameters that configure the feature extraction algorithms. Here is an example of one of each of the vehicle and non-vehicle classes:

alt text

In order to identify if the images that show a vehicle the following feature extraction techniques are used:

Histogram of Color
Spatial Binning
Histogram of oriented gradients

Histograms of Color

The combinations of parameters and its impact on the test accuracy is calculated in test test_01_train_histogram() of test_train.py

Number of features	Color space	Numer of bins	Test Accuracy
24	RGB	8	0.842
48	RGB	16	0.884
96	RGB	32	0.902
192	RGB	64	0.922
24	HSV	8	0.906
48	HSV	16	0.946
96	HSV	32	0.947
192	HSV	64	0.952
24	LUV	8	0.868
48	LUV	16	0.889
96	LUV	32	0.910
192	LUV	64	0.932
24	HLS	8	0.888
48	HLS	16	0.921
96	HLS	32	0.948
192	HLS	64	0.961
24	YUV	8	0.865
48	YUV	16	0.889
96	YUV	32	0.911
192	YUV	64	0.930
24	YCrCb	8	0.873
48	YCrCb	16	0.883
96	YCrCb	32	0.923
192	YCrCb	64	0.936

Spatial Binning

The combinations of parameters and its impact on the test accuracy is calculated in test test_02_train_spatial of test_train.py

Number of features	Color space	Spartial Size	Test Accuracy
192	RGB	8	0.902
768	RGB	16	0.905
3072	RGB	32	0.909
12288	RGB	64	0.905
192	HSV	8	0.873
768	HSV	16	0.899
3072	HSV	32	0.872
12288	HSV	64	0.877
192	LUV	8	0.898
768	LUV	16	0.926
3072	LUV	32	0.901
12288	LUV	64	0.904
192	HLS	8	0.871
768	HLS	16	0.895
3072	HLS	32	0.870
12288	HLS	64	0.877
192	YUV	8	0.901
768	YUV	16	0.919
3072	YUV	32	0.901
12288	YUV	64	0.896
192	YCrCb	8	0.899
768	YCrCb	16	0.924
3072	YCrCb	32	0.896
12288	YCrCb	64	0.901

The best results are marked in the table.

Gradient Features

Histograms of Ordered Gradients (HOG) were calculated in order to extract features that represent the shape of the vehicle.

I explored different color spaces and different skimage.hog() parameters (orientations, pixels_per_cell, and cells_per_block).

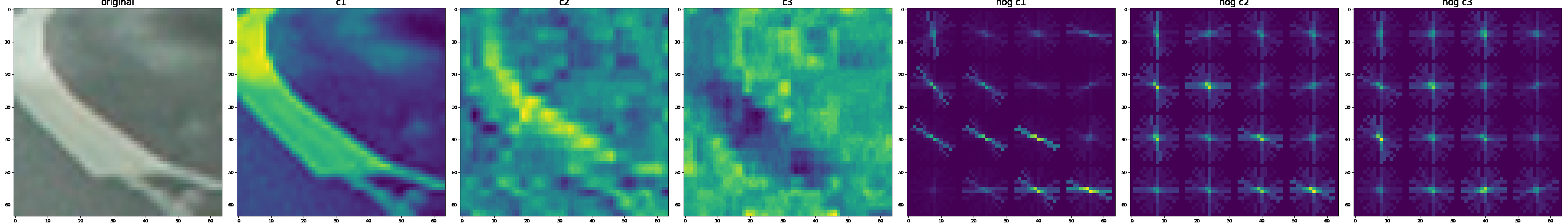

Here are example using the YUV color space and HOG parameters of orientations=13, pixels_per_cell=(16, 16) and cells_per_block=(2, 2):

Examples of vehicels alt text

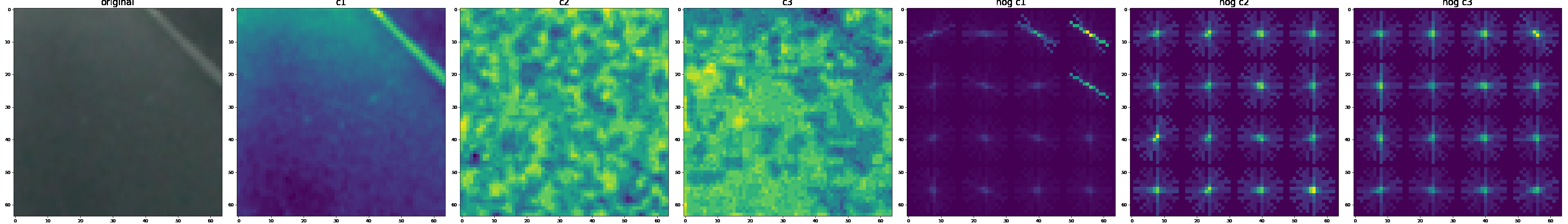

Exemples of non vehicles alt text

A linear Support Vector Machine classifier was trained with feature vectors that were created by different skimage.hog() parameters in order to figure out which parameters work best on the given training data. The following table is calculated in test_03_train_hog() of test_train.py

len features	color_space	orient	pix_per_cell	cell_per_block	hog_channel	accuracy
2940	HSV	5	8	2	ALL	0.962
6000	HSV	5	8	4	ALL	0.965
540	HSV	5	16	2	ALL	0.971
240	HSV	5	16	4	ALL	0.969
5292	HSV	9	8	2	ALL	0.955
10800	HSV	9	8	4	ALL	0.950
972	HSV	9	16	2	ALL	0.973
432	HSV	9	16	4	ALL	0.969
7644	HSV	13	8	2	ALL	0.942
15600	HSV	13	8	4	ALL	0.945
1404	HSV	13	16	2	ALL	0.968
624	HSV	13	16	4	ALL	0.968
2940	LUV	5	8	2	ALL	0.967
6000	LUV	5	8	4	ALL	0.968
540	LUV	5	16	2	ALL	0.976
240	LUV	5	16	4	ALL	0.975
5292	LUV	9	8	2	ALL	0.965
10800	LUV	9	8	4	ALL	0.966
972	LUV	9	16	2	ALL	0.976
432	LUV	9	16	4	ALL	0.977
7644	LUV	13	8	2	ALL	0.969
15600	LUV	13	8	4	ALL	0.969
1404	LUV	13	16	2	ALL	0.983
624	LUV	13	16	4	ALL	0.976
2940	HLS	5	8	2	ALL	0.957
6000	HLS	5	8	4	ALL	0.966
540	HLS	5	16	2	ALL	0.972
240	HLS	5	16	4	ALL	0.962
5292	HLS	9	8	2	ALL	0.949
10800	HLS	9	8	4	ALL	0.952
972	HLS	9	16	2	ALL	0.972*
432	HLS	9	16	4	ALL	0.968
7644	HLS	13	8	2	ALL	0.944
15600	HLS	13	8	4	ALL	0.949
1404	HLS	13	16	2	ALL	0.967
624	HLS	13	16	4	ALL	0.969
2940	YUV	5	8	2	ALL	0.965
6000	YUV	5	8	4	ALL	0.969
540	YUV	5	16	2	ALL	0.976
240	YUV	5	16	4	ALL	0.978
5292	YUV	9	8	2	ALL	0.967
10800	YUV	9	8	4	ALL	0.975 ]
972	YUV	9	16	2	ALL	0.980
432	YUV	9	16	4	ALL	0.978
7644	YUV	13	8	2	ALL	0.980
15600	YUV	13	8	4	ALL	0.970
1404	YUV	13	16	2	ALL	0.981
624	YUV	13	16	4	ALL	0.973
2940	YCrCb	5	8	2	ALL	0.964
6000	YCrCb	5	8	4	ALL	0.969
540	YCrCb	5	16	2	ALL	0.976
240	YCrCb	5	16	4	ALL	0.980
5292	YCrCb	9	8	2	ALL	0.967
10800	YCrCb	9	8	4	ALL	0.967
972	YCrCb	9	16	2	ALL	0.976
432	YCrCb	9	16	4	ALL	0.976
7644	YCrCb	13	8	2	ALL	0.970
15600	YCrCb	13	8	4	ALL	0.974
1404	YCrCb	13	16	2	ALL	0.977
624	YCrCb	13	16	4	ALL	0.979

The best results are marked in the table.

Combination of Feature Extraction

color space YUV number of orientations=13, pix per cell 16, cells per block 2, and hog channels = “All”, spartial size of 16, 64 bins.

len features	spatial_feat	hist_feat	hog_feat	accuracy
2364	True	True	True	0.991
960	True	True	False	0.961
2172	True	False	True	0.986
768	True	False	False	0.924
1596	False	True	True	0.990
192	False	True	False	0.933
1404	False	False	True	0.983

The best results are marked in the table.

Training of the Classifier

I trained a linear SVM using the following test data that consists of 8792 vehicle images and 8968 non vehicles images

The training of the classifier is implemented in function train() of train.py:

For each image the feature vector is calculated in method extract_features() in that is implemented in file lesson_functions.py:
sklearn.preprocessing.StandardScaler()is used to normalize the feature vectors
sklearn.model_selection.train_test_split() creates shuffled training and test data and labels
the trained classifier is is saved via pickle so that it can be reused later (see test_train.py )

Sliding Window Search

The trained classifier is applied on sliding windows of different sizes. Small sizes are applied in parts of the image where the vehicles are expected to be small. Bigger windows are used at the lower part of the image where they are expected to be big.

ystart = 380
ystop = 480
scale = 1.0
ystart = 400
ystop = 600
scale = 1.5
ystart = 500
ystop = 700
scale = 2.5

The pipeline for detection of cars is implemented in function process() in file car_finder_pipeline.py. It consists of the following steps:

Search for vehicles using the aformentioned sliding windows approach (see the find_cars() that is implemented in search_and_classify.py )
If the classifier detects a car in the window, then the window is added to the set of hot boxes.
These boxes are then combined in a heatmap that shows how many boxes overlap at each point in the image.
I then used scipy.ndimage.measurements.label() to identify individual blobs in the heatmap (see hotspots.py).
I then assumed each blob corresponded to a vehicle. I constructed bounding boxes to cover the area of each blob detected.

Ultimately I searched on three scales using YUV 3-channel HOG features plus spatially binned color and histograms of color in the feature vector, which provided a nice result. Here are some example images of the results and the intermediate calculations:

alt text

Video Implementation

Here’s a link to my video result

In order to reduce the false positives I included detections of vehicles in previous frames (see hotspots.py, draw_labeled_bboxes_with_history())

Here’s an example showing results and the intermediate work product of a sequence of frames in the project video.:

alt text

Here the resulting bounding boxes are drawn onto the last frame in the series: alt text

Discussion

While implementing this project I frequently ran into the situation where I tried to reuse a classifier that was trained using different feaure extraction strategies and parameters. By adding the parameters into the pickle file, I was able to avoid this problem.

The results of the vehicle detections improved significantly by improving the following aspects of the code:

improve accuracy of classifier
eleminiation of false positives by considering the hotspots of the last frames

Since the classifier was trained on a quite small training set, the classifier might not work as well in other situations. We could improve the training set by:

augmentation of existing training data.
extracting additional images from the given project video. Note: we can especially focus on detected false positives which should be added to the set of non vehicles.

For improved classification results we might be able to find a better feature extraction mechanism or we could use a CNN such as YOLO (“You only look once”). Additionally, we could try to improve the parameters of the classifier using sklearn.model_selection.GridSearchCV.

Pro Tips

using IPython Tracer to debug. For example, the code below will activate the debugger:
```
from IPython.core.debugger import Tracer
Tracer()()
```
The Tracer()() object has to be placed where you’d like to inspect specific variables.
If you wish to master the art of writing clean code in Python, you may want to check out the Google Python Style Guide.
